Mini Multipurpose Wire Tool | 078-1023

VERTICAL CABLE 078-1023 – MINI MULTIPURPOSE WIRE TOOL

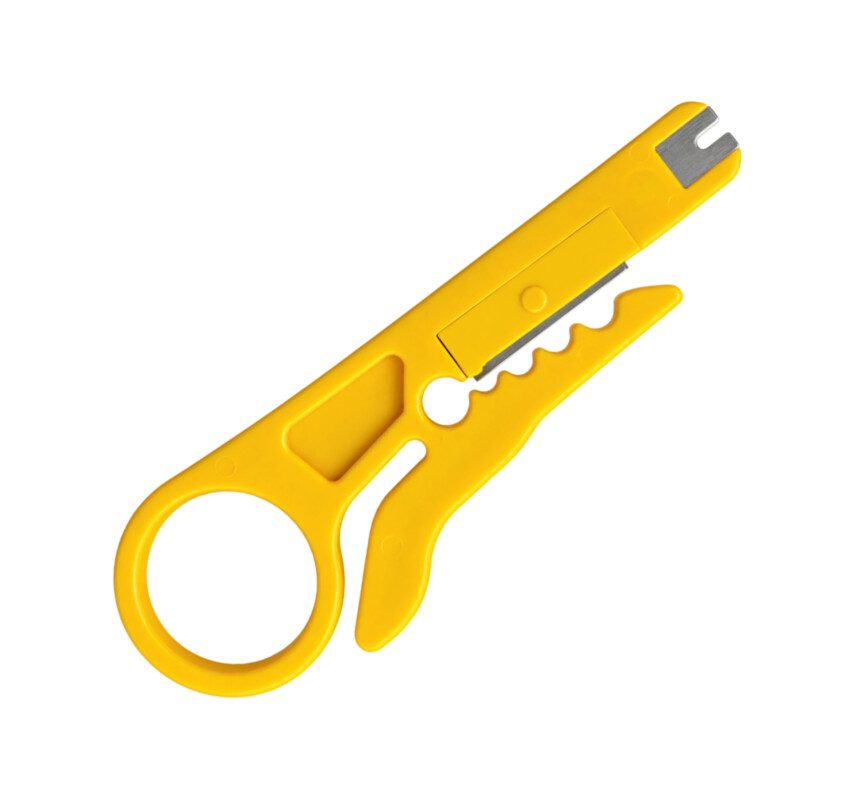

The 078-1023 is a pocket-size multipurpose wire tool that strips cable jackets and punches down 110-style connections in one compact tool. An integrated metal stripping blade handles round cable jackets, and the built-in 110-type punch-down blade seats the conductors. Weighing just 0.05 lb, this multipurpose wire tool fits easily in a tool pouch for quick terminations and touch-ups.

KEY FEATURES

Here’s what makes the 078-1023 a handy multipurpose wire tool:

• Two Tools in One: A cable stripper and 110-type punch-down tool in one compact body.
• Integrated Metal Stripping Blade: An alloy steel blade with a convenient cable insertion slot for jacket removal.
• Integrated 110-Type Punch Down Blade: Seats conductors into 110-style terminations. It does not cut, so trim excess conductor separately.
• Wide Cable Compatibility: Works with UTP/STP, CAT5e/CAT6, and other round cable jackets.
• Industrial-Grade ABS Construction: A durable plastic body with a tough alloy steel blade.
• Ergonomic Grip Design: A 0.7 in (17.8 mm) handle ring is easy to hold and turn.
• Compact and Lightweight: Just 3.5 in long and 0.05 lb (0.02 kg).
• Bright Yellow Color: Easy to spot in a crowded tool bag.

APPLICATIONS

The 078-1023 is made for quick, everyday termination work:

• 110 Block and Patch Panel Terminations: Seat conductors into 110-style IDC terminations.
• Keystone Jack Terminations: Punch down CAT5e and CAT6 jacks that accept 110-type blades.
• Cable Jacket Stripping: Remove round jackets from UTP and STP network cable.
• Tight Spaces: Reach into wall plates, junction boxes, and crowded racks where a larger tool won’t fit.
• Service Calls and Touch-Ups: A pocket-size backup for moves, adds, and changes.

WHY CHOOSE THE 078-1023 MINI MULTIPURPOSE WIRE TOOL?

Installers choose the 078-1023 for its portability, versatility, and easy handling. Here are 5 reasons to add it to your toolkit:

1. Two Jobs, One Tool: Strip the jacket and seat the conductors without switching tools.
2. Pocket-Size Portability: At 3.5 in and 0.05 lb, it fits in a pouch, a shirt pocket, or a service kit.
3. Works with Common Cable Types: Handles UTP/STP, CAT5e/CAT6, and other round cable jackets.
4. Built to Last: An industrial-grade ABS body and alloy steel blade stand up to daily use.
5. Easy to Find and Hold: The bright yellow color and ergonomic grip keep it handy on the job.

GETTING IT INSTALLED?

A few tips to get clean terminations with the 078-1023:

• Score the jacket, don’t slice through it. Rotate lightly around the cable so you don’t nick the conductors underneath. About 1.5 in of jacket removed is typical for 110 block terminations.
• Keep the untwist short. TIA-568 limits untwisted conductor at the termination to about 0.5 in (13 mm), so leave the pairs twisted as close to the termination as you can.
• Seat all eight conductors fully. Punch down straight and level so each conductor settles completely into its IDC slot.
• Trim the excess. The punch-down blade doesn’t cut, so keep a pair of flush cutters handy to clean up the conductor ends.
• Pick one wiring scheme. Whether you use T568A or T568B, wire both ends of a run the same way.
